Product Structure
It uses choice cold-rolled steel sheets, after spot weld forming by stretching and then with epoxy coating .
it is sprayed on the surface and filled with foaming cement in the middle. There are also holes of corner locks on four corners.
Applicability
5A office buildings and intelligent office space.

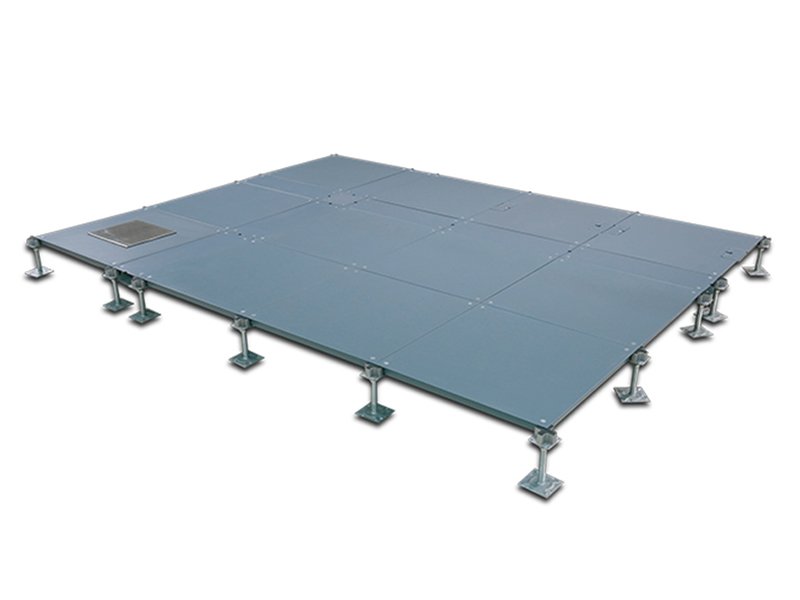

OA500 STEEL ACCESS FLOOR PANEL
| Type | Size | Concentrated Load | Uniform Load | Ultimate Load | Rolling Load | Impact Load | Standard |
| (mm) | (N) | (N/ ㎡) | (N) | 10000passes | (N) | ||
| FS680 | 500x500x28 | 2950 | 12500 | 8850 | 2250 | 450 | CISCA&GB/T 36340-2018
|
| FS800 | 500x500x28 | 3550 | 16000 | 10800 | 2950 | 450 | |
| FS1000 | 500x500x28 | 4450 | 23000 | 13500 | 3550 | 670 | |
| FS1250 | 500x500x28 | 5560 | 33000 | 16680 | 4450 | 670 | |
| Flatness | ≤0.6mm | ||||||
| Vertical | ≤0.3mm | ||||||
