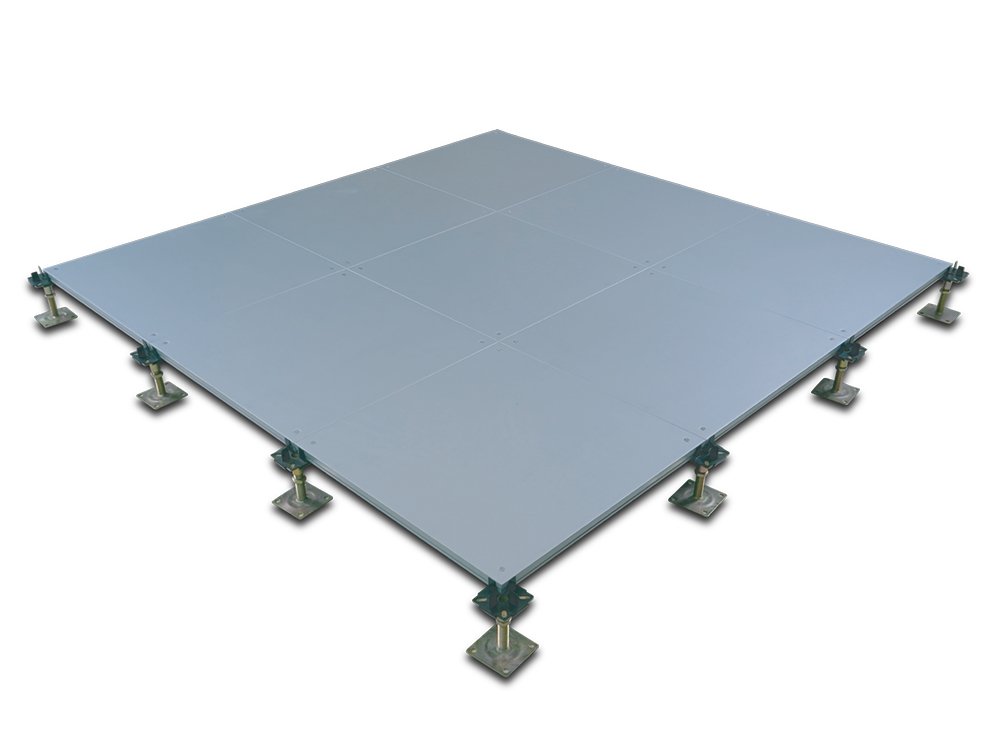

Product Structure
Its core is made of choice high-strength calcium sulphate, with upper and lower choice galvanized steel plate to wrap and extend to all around four sides.
Applicability
5A office buildings and intelligent office space.
| Type | Size | Concentrated Load | Uniform Load | Ultimate Load | Rolling Load | Impact Load | Standard |
| (mm) | (N) | (N/ ㎡ ) | (N) | 10000passes | (N) | ||
| OA500W-P | 500×500 | 3550 | 16000 | 10800 | 2950 | 450 | CISCA&GB/T 36340-2018
|
| OA500W-B | 500×500 | 4450 | 23000 | 13500 | 3550 | 670 | |
| OA600W-B | 600×600 | 4450 | 23000 | 13500 | 3550 | 670 | |
| OA600W-Z | 600×600 | 5560 | 33000 | 16680 | 4450 | 670 | |
| Flatness | ≤0.6mm | ||||||
| Vertical | ≤0.3mm | ||||||
